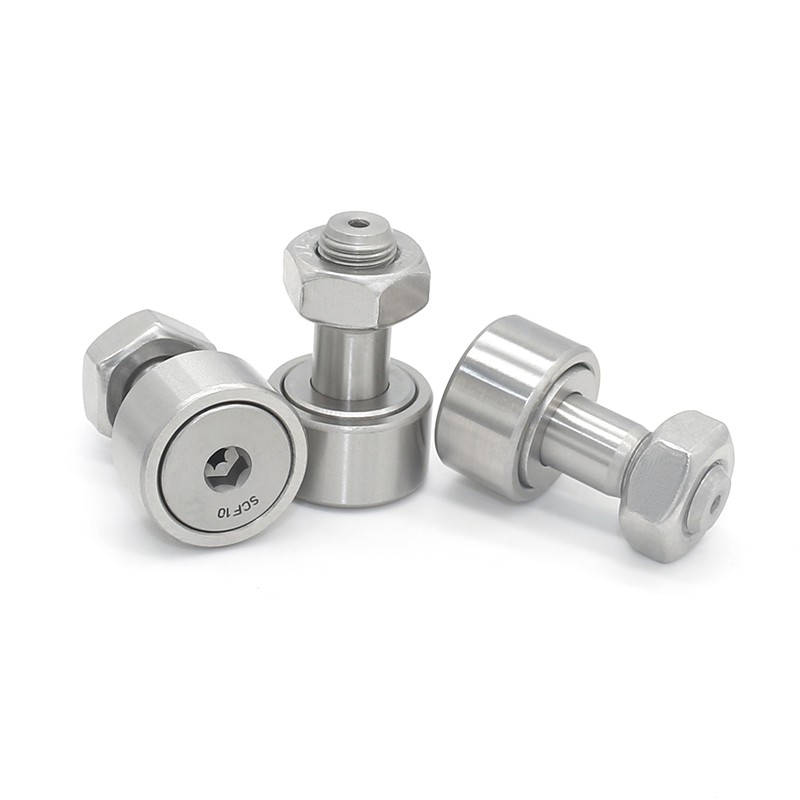

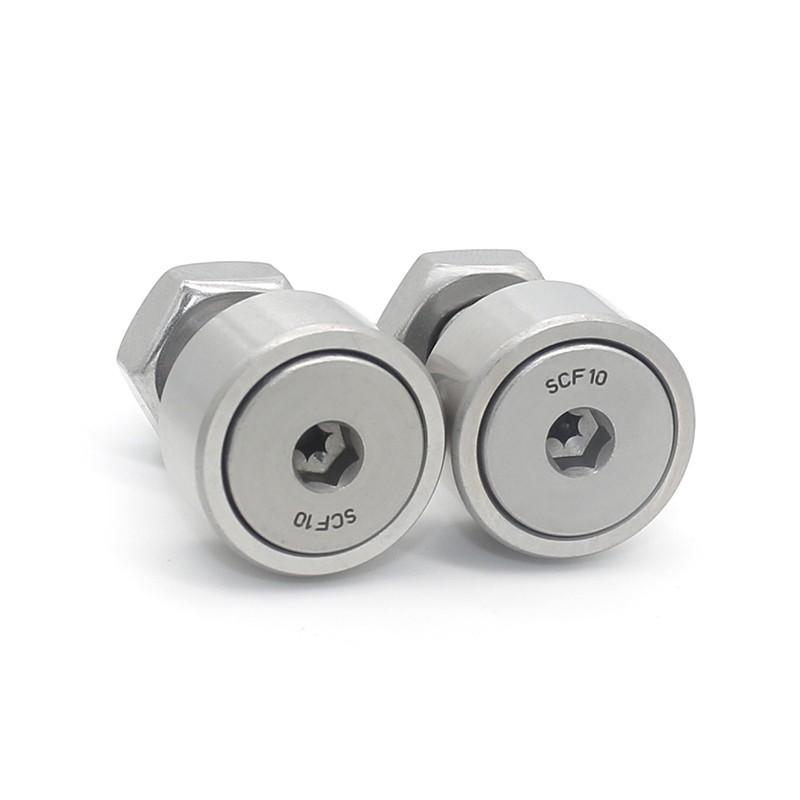

Cf10 કેમ અનુયાયી

બેરિંગ મોડલ

બેરિંગ સાઈઝ(mm)

D

C

G

d1

G1

B

B1

B2

B3

C1

rsmin

H

KR10

CF3

10

7

M3*0.5

3

5

8

17

9

-

0.5

0.2

2

KR12

CF4

12

8

M4*0.7

4

6

9

20

11

-

0.5

0.3

2.5

KR13

CF5

13

9

M5*0.8

5

7.5

10

23

13

-

0.5

0.3

3

KR16

CF6

16

11

M6*1

6

8

12.2

28.2

16

-

0.6

0.3

3

KR19

CF8

19

11

M8*1.25

8

10

12.2

32.2

20

-

0.6

0.3

4

KR22

CF10

22

12

M10*1.25

10

12

13.2

36.2

23

-

0.6

0.3

4

KR26

CF10K

26

12

M10*1.25

10

12

13.2

36.2

23

-

0.6

0.3

4

KR30

CF12

30

14

M12*1.5

12

13

15.2

40.2

25

6

0.6

0.6

6

KR32

CF12K

32

14

M12*1.5

12

13

15.2

40.2

25

6

0.6

0.6

6

KR35

CF16

35

18

M16*1.5

16

17

19.6

52.1

32.5

8

0.8

0.6

6

KR40

CF18

40

20

M18*1.5

18

19

21.6

58.1

36.5

8

0.8

1

8

KR47

CF20-1

47

24

M20*1.5

20

21

25.6

66.1

40.5

9

0.8

1

8

KR52

CF20

52

24

M20*1.5

20

21

25.6

66.1

40.5

9

0.8

1

8

KR62

CF24

62

29

M24*1.5

24

25

30.6

80.1

49.5

11

0.8

1

12

KR72

CF24K

72

29

M24*1.5

24

25

30.6

80.1

49.5

11

0.8

1

12

KR80

CF30

80

35

M30*1.5

30

32

37

100

63

15

1

1

17

KR85

CF30K

85

35

M30*1.5

30

32

37

100

63

15

1

1

17

KR90

CF30J

90

35

M30*1.5

30

32

37

100

63

15

1

1

17
